Unit integration, diverse configuration
Model number：YK1230 to 2460(special models need to be customized)
yield：15-500 t/h (output varies according to material characteristics)
Use：Suitable for coal, limestone, gravel, gravel, metal or non-metal ore and other materials screening.
Because you need it, and we specialize. Welcome to visit the factory！
Consult ustelephone：0373-5701114

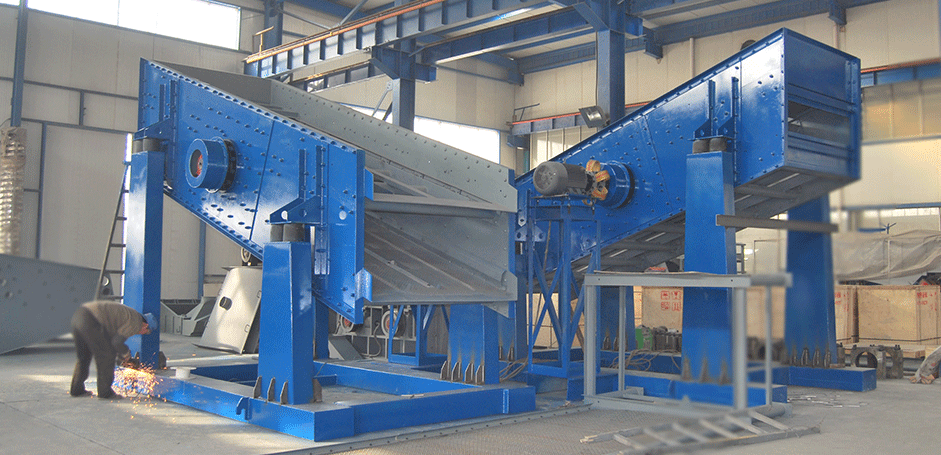

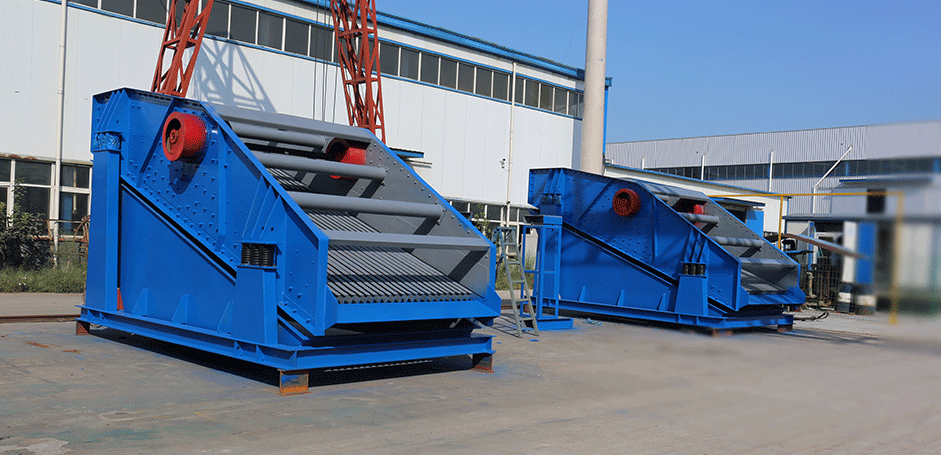

Circular vibrating screen referred to as circular vibrating screen large capacity, long service life, smooth operation, YK heavy mining round vibrating screen models mainly ya 3yk ZYK YKR circular vibrating screen, suitable for coal, limestone, gravel metal or non-metallic ore material screening.
The YK series circular vibrating screen is mounted on a pedestal, and the inclination Angle of the screen surface can be adjusted by changing the position height of the spring support. The screen plate has a perforated screen plate and a rubber screen plate, there are two kinds of single and double, all kinds of screen plates can meet the requirements of high screening efficiency, long life and no plugging. The motor can be flexibly installed on the left or right side of the screen frame.
| Model number | Feed size (mm) | Screen size (mm) | Processing capacity (t/h) | Motor Model/Power (kW) | Reference weight (kg) | Double amplitude (mm) | |
| YK1230 | ≤150 | 10～80 | 75～245 | Y160M-6 | 7.5 | 2800 | 6～10 |
| YK1530 | 80～255 | Y160M-6 | 7.5 | 3440 | |||
| YK1536 | 95～310 | Y160M-6 | 7.5 | 3650 | |||
| YK1836 | 115～370 | Y160L-6 | 11 | 5310 | |||
| YK1848 | 150～490 | Y160L-6 | 15 | 6410 | |||
| YK2045 | ≤200 | 10～100 | 165～520 | Y180L-6 | 15 | 8900 | 8～12 |
| YK2060 | 170～550 | Y200L1-6 | 18.5 | 11000 | |||
| YK2148 | 175～570 | Y225M-8 | 22 | 10700 | |||
| YK2160 | 220～715 | Y225M-8 | 22 | 11900 | |||
| YK2460 | 250～810 | Y250M-8 | 30 | 13600 | |||
| YK3060 | 300～960 | Y250M-8 | 30 | 16800 | |||
| 2YK1230 | ≤150 | 10～80 | 75～245 | Y160M-6 | 7.5 | 3200 | 6～10 |
| 2YK1245 | 75～250 | Y160L-6 | 11 | 3780 | |||
| 2YK1530 | 80～255 | Y160L-6 | 11 | 4650 | |||
| 2YK1536 | 95～310 | Y160L-6 | 11 | 5100 | |||
| 2YK1836 | 115～370 | Y180L-6 | 15 | 6840 | |||
| 2YK1848 | 150～490 | Y200L1-6 | 18.5 | 8200 | |||
| 2YK2060 | ≤200 | 10～100 | 170～550 | Y225M-8 | 22 | 12500 | 8～12 |
| 2YK2148 | 175～570 | Y225M-8 | 22 | 13000 | |||
| 2YK2160 | 220～715 | Y225M-8 | 30 | 15500 | |||
| 2YK2460 | 300～810 | Y225M-8 | 30 | 18500 | |||
● The exciter adopts eccentric form, which not only increases the eccentric mass of the exciter single heavy vibration force, but also the excitation force can be randomly regulated, which is easy to modular design and use.
● The structure trend of the screen machine is simplified, which is conducive to improving the manufacturing process level and assembly accuracy of the equipment.
● The use of cross shaft universal joint drive shaft or rubber coupling and other flexible connection, smooth operation.
● High screening efficiency, large processing capacity, long service cycle and service life.
● Equipment maintenance is simple and convenient, the whole machine operation benefit is obvious.
Note: Ranked in no particular order, part.
