Unit integration, diverse configuration
Model number：GFDLX-20 to 200
yield：15-500 t/h (output varies according to material characteristics)
Use：Paint, beer, vegetable oil, medicine, cosmetics, chemicals, petroleum products, textile chemicals, photosensitive chemicals, electroplating solution, milk, mineral water, hot solvent, latex, industria
Because you need it, and we specialize. Welcome to visit the factory！
Consult ustelephone：0373-5701114

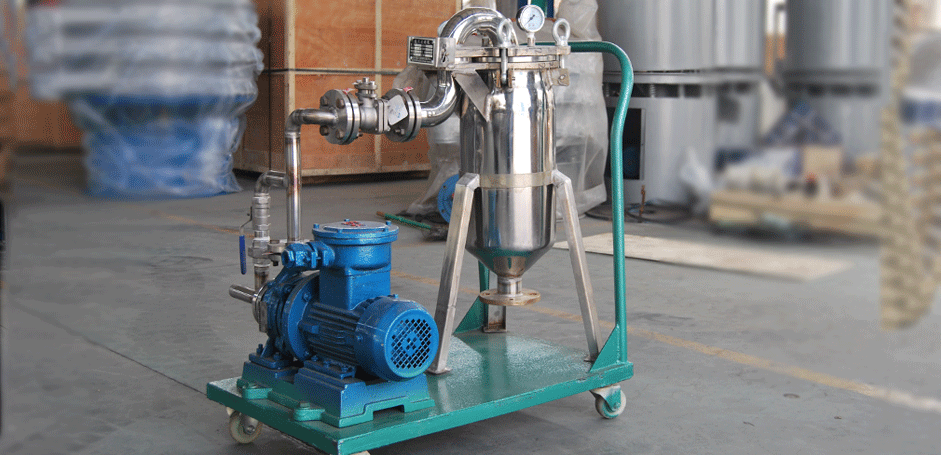

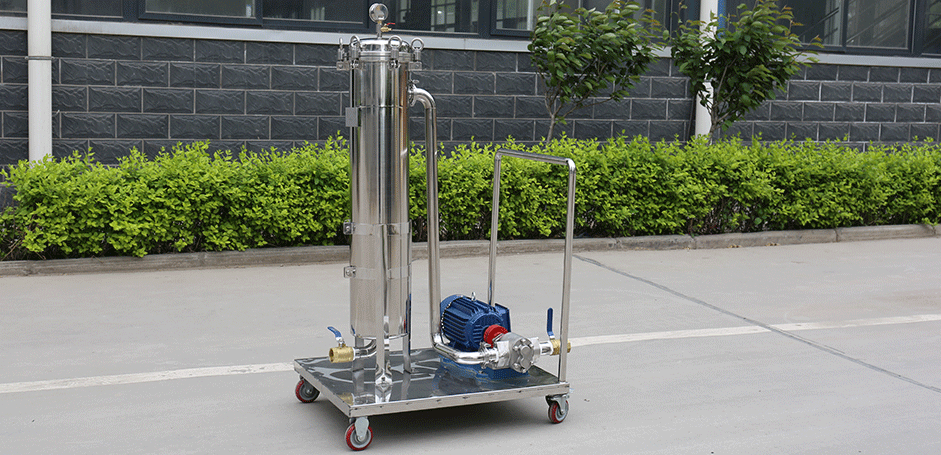

Single-bag filter, also known as single-bag filter, is used in food, medicine, chemical, oil and other industries, stainless steel mobile single-bag filter compact structure, equipped with mobile carts more convenient to move.
Paint, beer, vegetable oil, medicine, cosmetics, chemicals, petroleum products, textile chemicals, photosensitive chemicals, electroplating solution, milk, mineral water, hot solvent, latex, industrial water, sugar water, resin, ink, industrial wastewater, fruit juice, edible oil, etc.
Single-bag filter is a kind of compact, energy-saving, airtight, high efficiency, strong applicability of multi-purpose filter equipment. The liquid to be filtered is pressed into the upper left inlet from the side of the filter, and passes through the filter bag from the inside out. The liquid through the filter layer, that is, the clarified liquid, is continuously discharged from the outlet, and the impurities are intercepted in the deep and surface of the filter bag to achieve the purpose of filtration.
| Model number | Filter area（㎡） | High working pressure（MPa) | High operating temperature（℃） | yield（m³/h） | Filtration accuracy（μm） |
| GFDLX-20 | 0.2 | 0.6 | The operating temperature is related to the use of filter materials | 1-3 | 1、2、3、10、15、20、25、40、50、65、75、80等 |
| GFDLX-50 | 0.5 | 0.6 | The operating temperature is related to the use of filter materials | 2-6 | |
| GFDLX-100 | 1 | 0.6 | The operating temperature is related to the use of filter materials | 5-20 | |
| GFDLX-200 | 2 | 0.6 | The operating temperature is related to the use of filter materials | 5-50 |
● Suitable for fine particles or suspended matter, large treatment flow per unit filtration area, small filtration resistance, high filtration efficiency. The filtration function of a liquid filter bag is equivalent to 5-10 times the filter element, which can reduce the cost; The design flow can meet the requirements of 1-500m3 /h, and the cost is low.
● Widely used, can be used for coarse filter, medium filter or fine filter; In the case of achieving the same filtering effect, compared with plate and frame fine filter, filter core filter and other equipment has the advantages of low investment cost, long service life and low filtration cost.
● Liquid bag filter specifications are complete, can meet different flow filtration requirements, low pressure type, side entry type, top entry type, multi-bag type, horizontal, material including stainless steel SUS304, 316, 316L.
Note: Ranked in no particular order, part.
