Unit integration, diverse configuration
Model number：WS-600 to 1800
yield：15-500 t/h (output varies according to material characteristics)
Use：Food industry, pharmaceutical industry, chemical industry, metal, metallurgical mining, other industries, etc
Because you need it, and we specialize. Welcome to visit the factory！
Consult ustelephone：0373-5701114

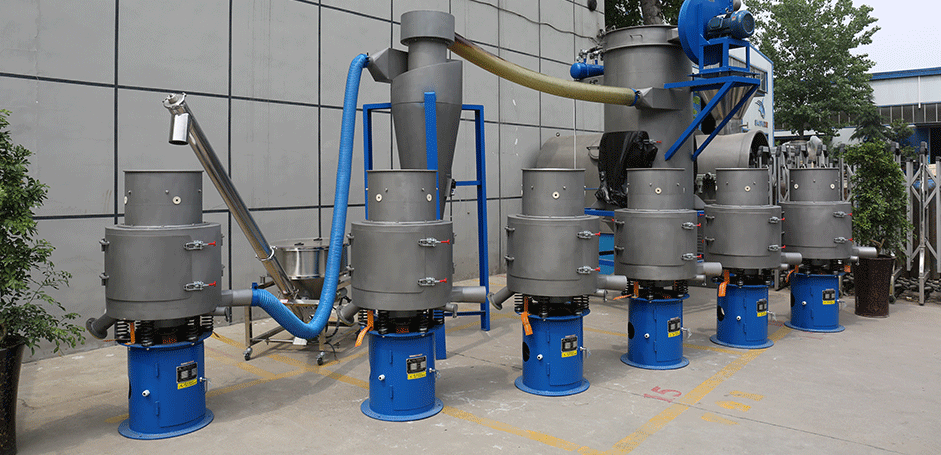

Vertical airflow screen is suitable for screening and grading of various powder materials with 80-530 mesh mesh, high screening efficiency, large output, automatic feeding and discharging, continuous operation, making it easy to carry out high fineness screening with various vibrating screens in the past.
The airflow screen abandons the principle of gravity potential energy, adopts air as carrier and kinetic energy as work. The raw material mixture enters the body from the air inlet, and is reinforced by the intelligent turbine, so that the dispersed monomer of the raw material passes orderly through the composite screen, and enters the next process in the downwind direction. The unqualified foreign matter is intercepted and discharged through the automatic slag discharge port. This completes the selection process for networked jobs.
| Model number | Air flow （m³/h） | Screen size （mesh） | Feed size （mesh） | Screen power （kW） | Spindle speed （r.p.m） | Screen outside diameter （mm） | Full height （mm） |
| WS-600 | 240-1100 | 80-600mesh | 40mesh≤ | 3 | 1420 | Φ606 | 1380 |
| WS-1000 | 200-2500 | 5.5/7.5 | 960 | Φ1006 | 1730 | ||
| WS-1600 | 500-2600 | 11/15 | 970 | Φ1500 | 2335 | ||
| WS-1800 | 720-7200 | 22 | 650 | Φ1800 | 1802 |
1, instead of air sorting, air classifier of low energy screening equipment.
2, WS series gas screening machine gas mixing atomization through the network at the same time configuration vibration force, through the network rate of high slag removal rate.
3, WS series gas screen to adapt to a wide range of fineness: 80-600 purpose powder materials can be screened.
4, the product has no mixing phenomenon.
5, screen vertical installation, no load, long service life.
6, the screening system in the negative pressure semi-cycle state, no dust pollution.
7, WS series air screening machine can be used with a variety of mills, wind road connected to the grid.
8. WS series gas screen has low noise, low power consumption, continuous operation and low maintenance rate.
Note: Ranked in no particular order, part.
