Two-roll crusher intro

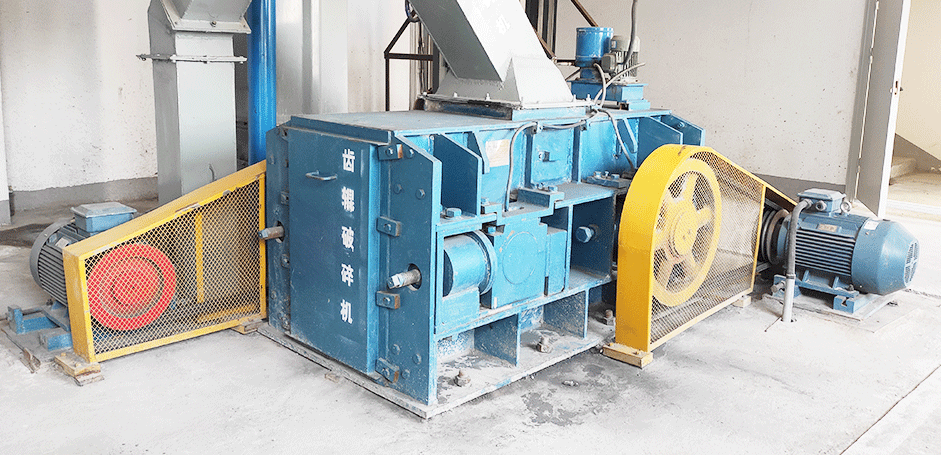

Double-roll crusher, also known as the roller crusher, coal crusher, is a coal crushing equipment designed according to the domestic circulating fluidized bed boiler, pulverized coal furnace, gasifier, self-provided power station, coal chemical industry, coal water slurry boiler, which needs coal burning needs, high coal combustion efficiency after crushing, saving coal energy consumption.

Two-roll crusher video

Two-roll crusher Application material

Double roll crusher application materials

Two-roll crusher Working principle

Double roll crusher is the use of two groups of separately driven roller shaft, relative rotation of the rolling force and grinding shear to break materials of mechanical equipment.

When the material enters the crushing chamber of the machine, the material is subjected to the biting force of the rotating roller, so that the material is forced between the two rollers, and is also subjected to the rolling and shear grinding of the roller, and the material begins to crumble. The small particles after fragmentation are thrown down the machine along the tangent line of the rotation of the roller through the gap between the two rollers, and the large particles exceeding the gap continue to be broken into small particles and discharged.

Two-roll crusher Technical parameter


Technical parameters of two roll coarse crusher

Model number	Productive capacity（t/h）	Motor type	power（kW）	Dimensions (L × W × H)	Weight (kg)
GF2PGC-50	30-60	YE2-200L2-6	22×2=44	4300×1430×1000	6200
GF2PGC-90	70-140	YE2-225M-6	30×2=60	4300×1630×1000	7300
GF2PGC-120	100-140	YE2-225M-6	30×2=60	4300×1830×1000	8050
GF2PGC-150	150-180	YE2-250M-6	37×2=74	4300×1830×1200	9250
GF2PGC-200	180-200	YE2-280S-6	45×2=90	4300×2130×1200	10500
GF2PGC-250	200-270	YE2-280M-6	55×2=110	4500×2480×1200	13250
GF2PGC-300	260-320	YE2-315S-6	75×2=150	4500×2480×1200	14050
GF2PGC-350	320-390	YE2-315S-6	75×2=150	4500×2790×1200	16150
GF2PGC-400	380-460	YE2-315M-6	90×2=180	4550×3090×1200	18250
GF2PGC-500	450-520	YE2-315L1-6	110×2=220	4550×3290×1200	20350
GF2PGC-600	550-620	YE2-315L2-6	132×2=264	4550×3590×1200	24150
GF2PGC-700	650-720	YE2-315L2-6	132×2=264	4550×3890×1200	27550
GF2PGC-800	750-820	YE2-355S-6	160×2=320	4550×4190×1200	30750

Two roll fine crusher technical parameters

Model number	Production capacity (t/h)	Motor type	Power (kW)	Dimensions (L × W × H)	Weight (kg)
GF2PGX-50	30-60	YE2-200L2-6	22×2=44	4400×1430×1100	6500
GF2PGX-90	70-100	YE2-225M-6	30×2=60	4400×1630×1100	8530
GF2PGX-120	100-130	YE2-225M-6	30×2=60	4400×1830×1100	9800
GF2PGX-150	140-160	YE2-250M-6	37×2=74	4400×2130×1100	11130
GF2PGX-200	180-210	YE2-280S-6	45×2=90	4600×2180×1300	14045
GF2PGX-250	220-260	YE2-280M-6	55×2=110	4600×2480×1300	15390
GF2PGX-300	260-320	YE2-315S-6	75×2=150	4600×2680×1300	16450
GF2PGX-350	270-360	YE2-315S-6	75×2=150	4600×2790×1300	17120
GF2PGX-400	350-410	YE2-315M-6	90×2=180	4650×3090×1300	19345
GF2PGX-500	450-510	YE2-315L1-6	110×2=220	4650×3290×1300	21400
GF2PGX-600	550-610	YE2-315L2-6	132×2=264	4650×3590×1300	24270
GF2PGX-700	650-720	YE2-315L2-6	132×2=264	4650×3890×1300	27820
GF2PGX-800	750-820	YE2-355S-6	160×2=320	4650×4190×1300	31050

Two-roll crusher peculiarity

● Over crushing rate is low and particle size is good, the combination of crushing, the material is instantly hard broken, the heavy breaking is low, and the grain is uniform.

● Vibration feed coal, uniform distribution, reduce the tooth plate partial wear, prolong the life of the tooth plate.

● High environmental protection and energy saving efficiency, feed ≤250mm, discharge 3-50mm adjustable, a crushing ratio of up to 50.

● When wood blocks and other non-magnetic alloys or rubber and other flexible objects into the crusher can not be broken, the two-tooth roller can automatically parallel to the above materials.
