Probability screen

Probability screen intro

Probabilistic screen is a new type of screening equipment, its screen box running track is straight line. This series of screening machine is a successful combination of probability theory and engineering practice, and its new design concept and structure and screening principle achieve very good screening effect of probability screening. It has broad application prospect.

GLS series probability screen system of our company introduced Germany and Spain and other countries technology, combined with the actual situation of our country and the use of the environment fully demonstrated, optimized and designed, compared with ordinary screening machine, the series of screening machine has a very high screening efficiency, widely used in building materials, mineral processing, metallurgy, chemical industry and other multi-level classification.

Probability screen video

Probability screen Application material

Probability screen Working principle

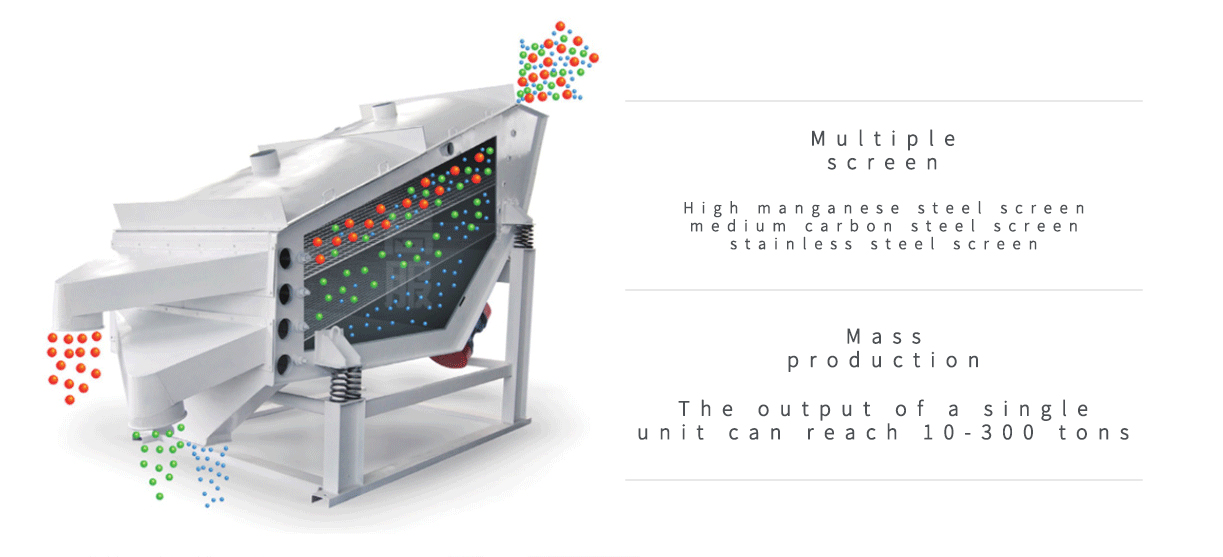

Probability screen is a kind of active use of probability screening principle of screening machinery, the screening theory points out that in the operation of each object in its internal retention time in the opposite proportion to its size and weight, through practical experiments found that the particle thickness is far less than the cavity, can quickly pass through the screen surface, the closer to the diameter of the cavity particle, the more prolonged the retention time. If the diameters of the two sides want to be close, the retention time of the particle is long, in popular terms, the large particle time is long, and the small particle time is short.

When the screen machine starts, the symmetrical arrangement of two vibration motors or exciter of the same model and specifications for synchronous reverse operation, the excitation force generated by the vibration transfer body - motor or the base of the exciter is transferred to the whole vibration body - screen box, so that the screen box drives the screen surface for periodic vibration, so that the material on the screen surface with the screen box for directional skipping movement, during which, The material less than the size of the screen surface falls to the lower layer through the screen hole and becomes the material under the screen, and the material larger than the size of the screen surface is discharged from the discharge port after continuous jumping movement, and the screening operation is finally completed.

Probability screen Technical parameter

Probability screen peculiarity

● The probability screen is 3 to 6 times the output of the ordinary screen machine in the screening of the coarse sand section of the mechanical sand and natural sand, and the output of a single unit can reach 10-300 tons, which solves the dilemma of the original layout of many equipment on the production line.

● The screen surface design is curved state, the external ratchet tightening can easily control the screen surface tension is not loose, the screen can be used for 60 days.

● The overall transportation and installation of the equipment, the equipment adjustment only needs to adjust the amplitude according to the field situation.

● Can be screened 5mm~2.36mm~1.2mm~0.6mm, part of the material has been screened to 0.3mm~0.15mm~0.075mm, can be customized.
