Unit integration, diverse configuration
Model number：Customized according to demand, no fixed model
yield：15-500 t/h (output varies according to material characteristics)
Use：Building materials industry, metallurgy industry, chemical industry, power industry, coal, carbon industry, machinery industry, light industry, food industry and food industry, etc
Because you need it, and we specialize. Welcome to visit the factory！
Consult ustelephone：0373-5701114

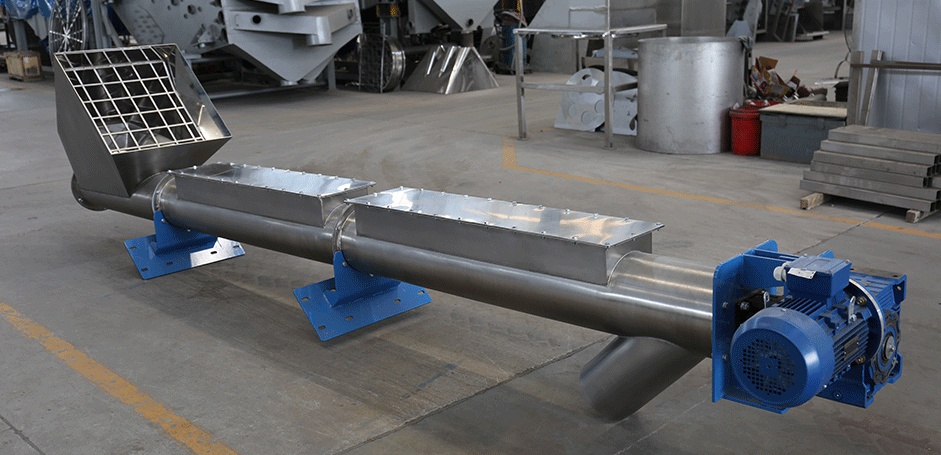

LS screw conveyor is the replacement of GX screw conveyor. This model has high reliability, long life, strong adaptability and easy installation and maintenance. You can choose the right model according to the size of your output. It is designed and manufactured according to JB/T7679-95 "Screw conveyor" standard.
Powdered sugar, starch, salt, soy milk, soy sauce, juice, tea, snack food, frozen food, condiments, protein, food additives, industrial drugs, Chinese medicine powder, pellet pills, pellets, resins, coatings, aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials, quartz sand, waste oil, waste water Dyeing and finishing wastewater, papermaking, auxiliaries, activated carbon, etc.
LS type screw conveyor is the use of rotating screw to transport the material along the fixed housing and transport work, the head and tail bearings moved to the shell, the hanging bearing with sliding bearing with dust sealing device, the bearing is generally used powder metallurgy, the conveying cement is used felt bearing, the lifting shaft and the spiral shaft are connected by sliding block.
LS type screw conveyor is frequently used in building materials industry, metallurgy industry, chemical industry, power industry, coal, carbon industry, machinery industry, light industry, food industry and food industry, working to handle conveying powder, granular, small block materials handy, such as coal mine, cement, food and other industries. Due to the small circulation area in the body, the screw conveyor should not transport materials that are easy to deteriorate, too viscous and easy to caking.
LS type screw conveyor structure characteristics, a screw conveyor is usually composed of body, access device, drive device three parts. The body consists of the first section, the middle section and the tail section. The first section is equipped with a push bearing to bear the axial force, and the middle section and the tail section are equipped with a bearing to support the spiral shaft. In addition, the tail section is also equipped with a radial bearing that can move axially to compensate for the error of the length of the spiral shaft and adapt to the change of temperature. Flange connection is adopted between each spiral shaft to improve the interchangeability of the connecting shaft and facilitate maintenance.
Customized according to demand, no fixed model.
● Small size, high speed, fast and uniform conveying.
● Good sealing, the shell is made of seamless steel pipe, the end is connected to each other with flanges, and the rigidity is good.
● Simple structure, low cost, small size, easy operation, can be sealed during use.
● The material conveying direction is reversible, even if the material is transported in two directions at the same time, the job can be completed.
