Unit integration, diverse configuration
Model number：SZF-520 to 1540/Special models need to be customized
yield：15-500 t/h/output varies according to material characteristics
Use：Polysilicon, molten silicon powder, spherical silicon powder, pellets, Chinese herbal medicine slices, iron powder, steel shot, alumina, etc.
Because you need it, and we specialize. Welcome to visit the factory！
Consult ustelephone：0373-5701114

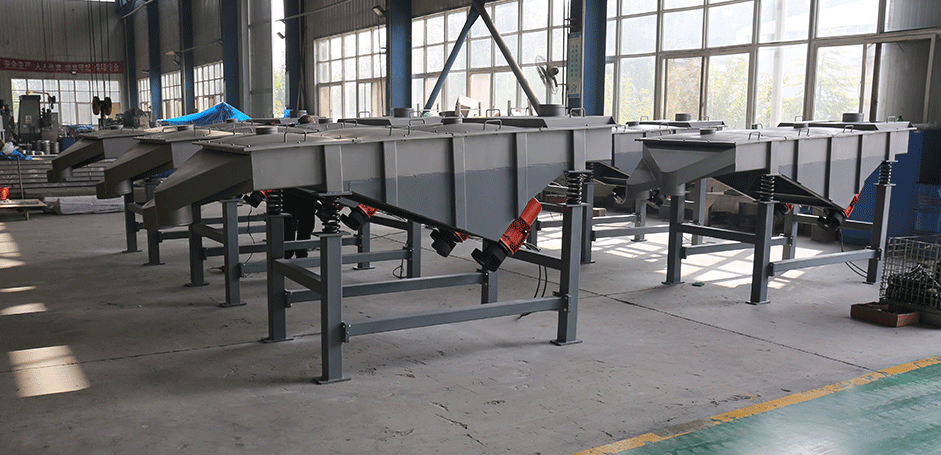

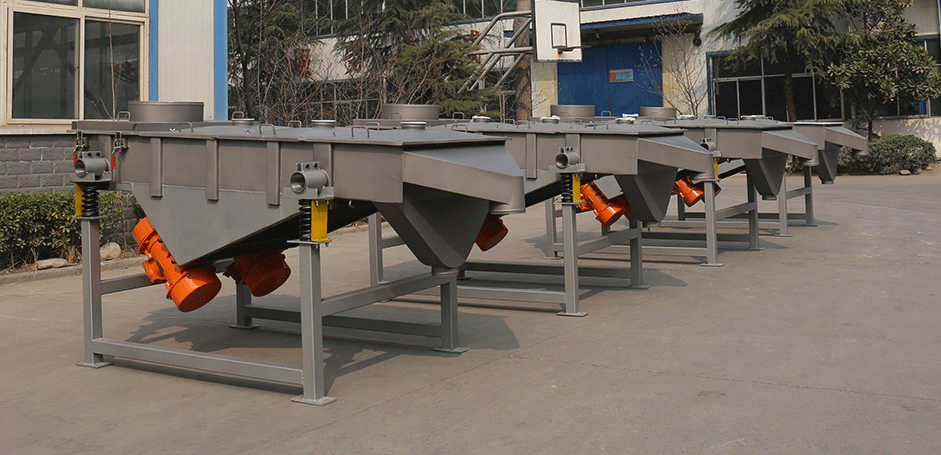

Linear vibrating screen is a screening equipment developed, upgraded and improved by Gaofu Machinery after introducing foreign technology, based on many years of domestic screening experience and domestic user feedback. The material enters the feed port of the linear screen and passes through the multi-layer screen to produce several specifications of oversize and undersize, which are discharged from their respective outlets. It has the characteristics of low energy consumption and high output!
When the two vibration motors installed longitudinally on the screen body are running relatively to each other, the lateral exciting forces generated by the motors are offset by each other due to the relative running of the motors, and the longitudinal exciting forces are transmitted to the entire screen box through the vibration transmitting body, causing the screen surface to vibrate, so that the materials on the screen surface are affected by the exciting forces and jump on the screen surface toward the discharge direction. Materials smaller than the screen holes pass through the screen holes and fall to the lower layer, and flow out from the discharge port after continuous jumping. Due to the reasonable screening process, materials with several different particle sizes can be obtained after being graded by the vibrating screen, thus completing the material grading operation.
| model | Nominal size (mm) | Material size (mm) | Incline angle (°) | Amplitude (mm) | Number of layers(s) | Power (kW) |
| SZF520 | 500×2000 | 0.074～10 | 0°～7° | 4～8 | 1～5 | 2×(0.4～0.75) |
| SZF525 | 500×2500 | 2×(0.4～0.75) | ||||
| SZF530 | 500×3000 | 2×(0.75～1.1) | ||||
| SZF535 | 500×3500 | 2×(0.75～1.1) | ||||
| SZF1020 | 1000×2000 | 2×(0.75～1.5) | ||||
| SZF1025 | 1000×2500 | 2×(1.1～1.5) | ||||
| SZF1030 | 1000×3000 | 2×(1.5～1.8) | ||||
| SZF1035 | 1000×3500 | 2×(1.5～2.2) | ||||
| SZF1040 | 1000×4000 | 2×(1.5～2.2) | ||||
| SZF1225 | 1200×2500 | 2×(1.5～2.2) | ||||
| SZF1230 | 1200×3000 | 2×(1.8～3) | ||||
| SZF1235 | 1200×3500 | 2×(1.8～3) | ||||
| SZF1530 | 1500×3000 | 2×(2.2～3) | ||||
| SZF1535 | 1500×3500 | 2×(2.2～3) | ||||
| SZF1540 | 1500×4000 | 2×(2.2～4) |
● Various materials can be graded and screened, and the particle size after screening is uniform and the screening accuracy is high.
● Generally, a single unit is designed with 1-5 layers, and the required number of layers can be selected according to different needs.
● It has the advantages of convenient maintenance and relatively low probability of repair.
● The angle-adjustable excitation source is used to screen cleanly; multi-layer design can be used to screen more; negative pressure can be evacuated, and the environment is good.
● It has a unique effect on the screening and grading of powdery and granular materials.
Note: Ranked in no particular order, part.
