Unit integration, diverse configuration
Model number：WSA18-65, WSA30, WSA50/ Special models need to be customized
yield：15-500 t/h (output varies according to material characteristics)
Use：Food industry, pharmaceutical industry, chemical industry, metal, metallurgical mining, non-metallic industry, other industries, etc
Because you need it, and we specialize. Welcome to visit the factory！
Consult ustelephone：0373-5701114
Horizontal air screen machine is optimized, innovated and improved on the basis of WSA series screen machine. Horizontal air screen mainly uses the flow of air flow to screen materials, it can be small particles of material through the air flow through the screen, so that the material can be screened. Because it is necessary to borrow the force generated when the air flow is flowing, the weight of the material to be screened must have a certain limit, and the larger debris in the material should be removed before the screening of the material.

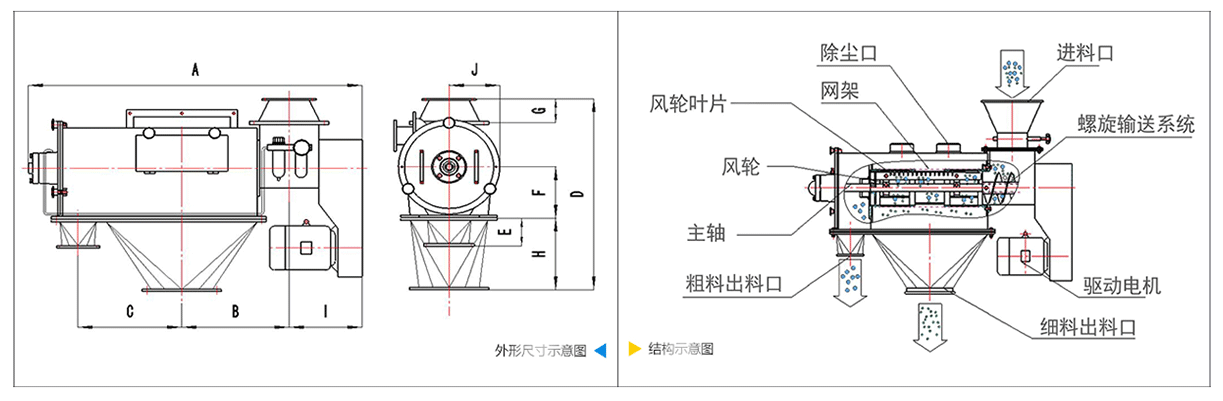

The screen of the equipment is cylindrical, placed in the body, the material through the spiral conveying system and air mixing, atomization into the net cylinder, through the net cylinder blade to make the material at the same time by centrifugal force and cyclone propulsion force, so that the material sprayed through the net, the net material discharged from the fine material outlet, can not go through the net material discharged from the coarse material outlet along the wall of the cylinder, to achieve the purpose of separation.
| Model number | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | H(mm) | I(mm) | J(mm) | material | apply |
| WSA18-65 | 1430 | 460 | 420 | 1005 | 135 | 230 | 330 | 340 | 210 | Q235A/SUS304 | 500mu |
| WSA30-100 | 1845 | 655 | 766 | 1240 | 320 | 285 | 350 | 380 | 290 | Q235A/SUS304 | 500mu |
| WSA50-130 | 2230 | 870 | 790 | 1775 | 280 | 515 | 660 | 400 | 485 | Q235A/SUS304 | 500mu |
● The design principle of airflow screen is more suitable for ultra-light and multi-fiber material screening.
● Long service life of the screen, the main reason for the rapid damage of the screen of the airflow screen is the equipment structure, the concentricity of the equipment, the processing technology of the net cage, which directly affects the service life of the screen.
● Airflow screen is easy to clean, suitable for multi-variety small batch screening, to avoid cross-contamination of materials caused by mixing.
● Air sieve series in the air system can withstand 0.1MPA pressure, suitable for flour and other positive pressure system, screening output is large.
