Four teeth roll crusher intro

After the introduction of foreign technology according to the domestic market combined with customer demand production and development of a special crusher for the coal industry, suitable for compressive strength less than 200Mpa, humidity less than 30% of medium hardness and soft materials, with the use of maintenance fee is low, crushing ratio is large!

Four teeth roll crusher video

Four teeth roll crusher Application material

Four teeth roller crusher application materials.png

Four teeth roll crusher Working principle

GF4PG four-tooth roller crusher is composed of high speed, force to do the opposite operation of the tooth roller. The material that meets the gap between the two teeth rollers falls freely, and the material that is larger than the gap between the two teeth is crushed instantaneously and falls freely to achieve the purpose of crushing and meet the particle size requirements. Relative roller differential operation, can clean the material between the teeth, so as to reduce the phenomenon of sticking, and so that the material can not stay on the tooth roller, to avoid repeated crushing, not to be crushed.

Four teeth roll crusher Technical parameter

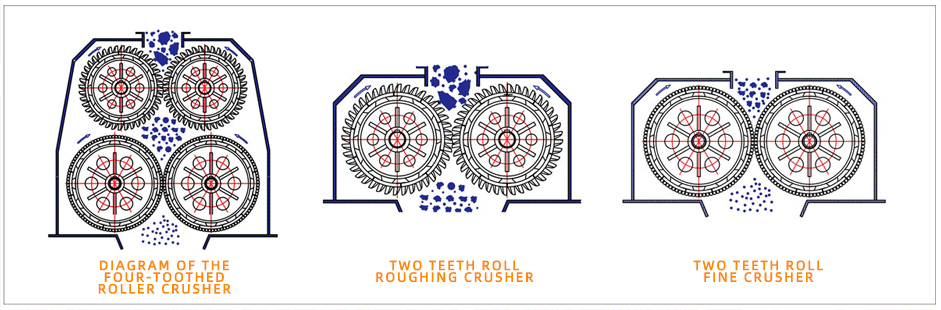

Operating principle diagram of toothed roller crusher

Model number	Production capacity (t/h)	Motor type	Power (kW)	Dimensions (L × W × H)	Weight (kg)
GF4PG-50	30-60	YE2-225M-6	30×2=60	2150×2400×2000	12000
GF4PG-90	70-100	YE2-250M-6	37×2=74	2500×2400×2000	16100
GF4PG-120	100-130	YE2-280S-6	45×2=90	2700×2400×2000	18500
GF4PG--150	140-160	YE2-280M-6	55×2=110	2900×2700×2400	21000
GF4PG-180	160-190	YE2-315S-6	75×2=150	3000×2700×2400	25000
GF4PG-200	180-220	YE2-315S-6	75×2=150	3250×2700×2400	26500
GF4PG-250	220-260	YE2-315M-6	90×2=180	3500×2700×2400	28100
GF4PG-300	260-310	YE2-315L1-6	110×2=220	3900×2700×2400	32000
GF4PG-350	300-360	YE2-315L2-6	132×2=264	4050×2700×2400	35200
GF4PG-400	350-410	YE2-355S-6	160×2=320	4250×2700×2400	38500
GF4PG-500	450-510	YE2-355M2-6	200×2=400	4600×2800×2450	43000
GF4PG-600	550-610	YE2-355L1-6	220×2=440	5200×2900×2450	51000
GF4PG-700	650-710	YKK-400-6	280×2=560	5500×2900×2450	56000
GF4PG-800	750-810	YKK-400-6	315×2=630	6000×3000×2500	62000

Four teeth roll crusher peculiarity

1. The over-crushing rate is low and the particle size is good, the combination of crushing is used to break the material instantly, the re-breaking is low, and the particle is uniform.

2. Vibration feed coal, uniform cloth, reduce the tooth plate partial wear, prolong the life of the tooth plate.

3. High environmental protection and energy saving efficiency, feed ≤350mm, discharge 3-50mm adjustable, a crushing ratio of up to 50.

4. When wood blocks and other non-magnetic alloys or rubber and other flexible objects into the crusher can not be broken, the two-tooth roller can automatically parallel to the above materials.
