首页>>product>>Explosion proof vibrating screen / Explosion-proof vacuum loader
Unit integration, diverse configuration
Model number：BZK
yield：15-200 t/h
Use：Used for conveying powder and granular materials in food, pharmaceutical, chemical and other industries.
Because you need it, and we specialize. Welcome to visit the factory！
Consult ustelephone：0373-5701114
BZK series explosion-proof vacuum conveyor is a kind of pneumatic conveying equipment that forms a vacuum through a fan to convey powder materials. It is suitable for multiple industries such as medicine, food, chemical industry, metallurgy, building materials, etc. It is aimed at the closed conveying of various powder materials, improves the cleanliness of materials, and meets the different conveying needs of customers.

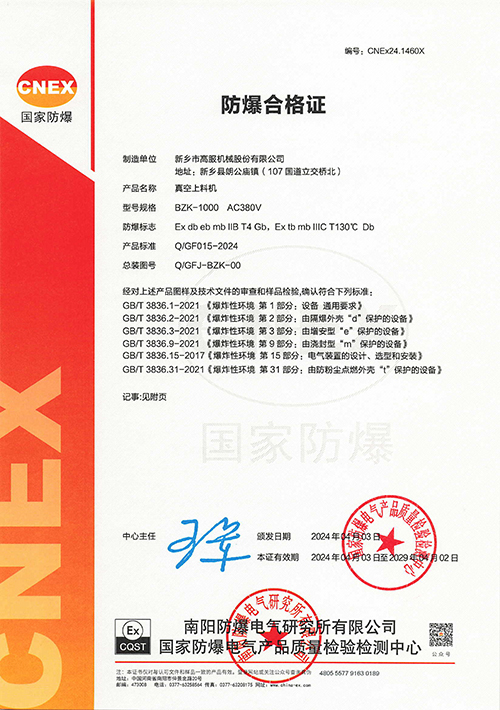

This product is suitable for explosive gas environment, gas group ⅡA, ⅡB, temperature group T1~T4, combustible dust environment A21, A22, and the maximum surface temperature does not exceed 130℃.
Various powder materials
BZK vacuum conveyor drives the material flow by negative pressure gas flow generated by Roots vacuum pump (or centrifugal fan), or positive pressure gas flow generated by Roots blower; the material is transported to the receiving bin, and the material is separated by weight and back-blowing system. During the conveying process, there is no dust and no leakage, which is suitable for multi-point to one-point material transportation and open feeding and transportation.
BZK vacuum conveyor is equipped with back-blowing device. Each time the material is discharged, the compressed air passes through the pulse back-blowing valve, back-blowing the filter, and knocking down the powder adsorbed on the filter surface. It plays the role of cleaning and material discharge to ensure the normal operation of the equipment.
参数 model | Motor power （kw） | Transport capacity （kg/H） | Number of filter elements | Filter area （m2） | Number of pulses |
BZK-420-304 | 5.5-7.5 | 1000-2000 | 9 | 0.85 | 3 |
BZK-600-304 | 7.5-15 | 2000-4000 | 18 | 1.7 | 4 |
BZK-1000-304 | ≥11 | ≥4000 | 38 | 5.4 | 6 |
Note: The above motor power is adjusted according to the actual conveying distance and production capacity requirements of the customer's site, and is not specified as a fixed model. | |||||
Note: Ranked in no particular order, part.
