首页>>product>>vibrating screen / Environmentally friendly vibrating screen
Unit integration, diverse configuration
Model number：DCB1640 to DCB2565/2FCB1640 to 2FCB2565
yield：15-500 t/h (output varies according to material characteristics)
Use：Sand and stone aggregate, dry powder mortar, mechanical sand, natural sand, quartz sand, perlite, dolomite, calcite, potassium feldspar and other stone powder and mineral powder classification.
Because you need it, and we specialize. Welcome to visit the factory！
Consult ustelephone：0373-5701114

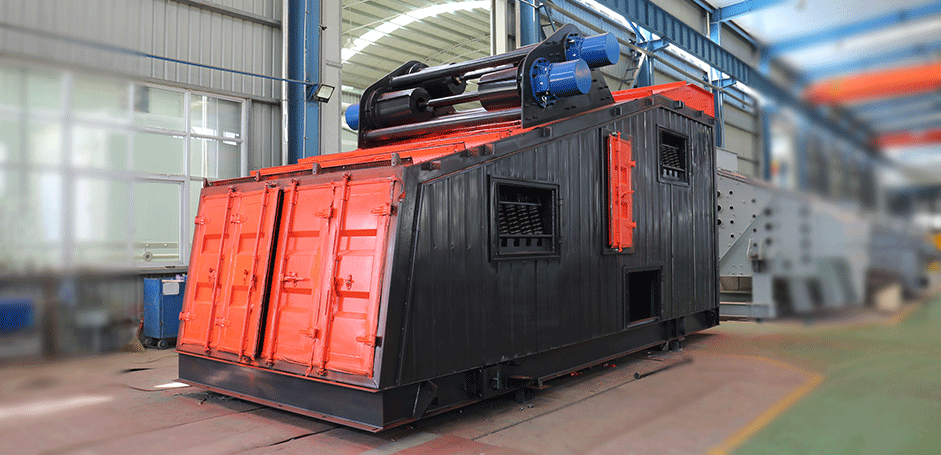

DCB environmental protection screen series vibrating screen using two vibration motor reverse self-synchronous operation drive mode, better stability. The screen is fixed by one end of the positioning pin and the other end of the hook plate tensioning and fixing method. Its unique screen fixing form makes the screen replacement very convenient and quick.
| Machine type | Suitable screen (mm) | Power (kW) | Source type | Screen Angle（°） | Double amplitude（mm） | The number of layers installed on the device |
| DCB1640 | 0.6-25 | 2.9×2 | MVE 6500/1 | 22-38 | 6-8 | 2-5 |
| DCB1840 | 2.9×2 | MVE 6500/1 | 2-5 | |||
| DCB2050 | 6.8×2 | MVE 11400/1 | 2-5 | |||
| DCB2256 | 9.0×2 | MVE 14800/1 | 2-5 | |||
| DCB2565 | 7.5×4 | MVE 13000/1 | 2-5 | |||
| 2FCB1640 | 5.0×2 | MVE 9000/1 | (1-2)×2 | |||
| 2FCB1840 | 5.0×2 | MVE 9000/1 | (1-2)×2 | |||
| 2FCB2050 | 6.8×2 | MVE 11400/1 | (1-2)×2 | |||
| 2FCB2256 | 9.0×2 | MVE 14800/1 | (1-2)×2 | |||
| 2FCB2565 | 7.5×4 | MVE 13000/1 | (1-2)×2 |
◆ Intelligent adjustment. Intelligent adjustment of equipment operating parameters through working conditions and environmental changes. Automatic start and stop, stable state monitoring and control, reliable operation, controllable fault.
◆ New vibration principle, fine materials do not block holes, reduce screen maintenance costs; Can screen more than 4 kinds of materials, high screening accuracy.
◆ Precision structure design, energy consumption reduced by 40%, energy saving and cost reduction, one to multiple units; Maintenance-free vibrating motor saves time and effort.
◆ Fully closed structure design, environmental protection operation, no dust; Stable operation, low noise, reduce interference to the outside world.
Note: Ranked in no particular order, part.
