Environmentally friendly dust-free vibrating screen-dust-free screening system price, supply, manufacturer

Environmentally friendly dust-free vibrating screen intro

Environmentally friendly dust-free vibrating screen is a clean and environmentally friendly screening device. It is designed to remove impurities and grade raw materials in a fully balanced and closed state.

To keep your health and wealth, only the extremely wealthy people do not care about the loss and flying of raw materials, or the scattering of some of them and the employees inhaling some of them into their lungs, because this may only account for one thousandth of the material, and in a year, it is only a loss of hundreds of thousands. If you want to keep your health and keep these wealth that originally belong to you, please call us for consultation. Our experts will use their rich successful experience and product technology to serve you systematically.

Environmentally friendly dust-free vibrating screen video

Environmentally friendly dust-free vibrating screen Application material

Dust-free feeding system application materials.jpg

Environmentally friendly dust-free vibrating screen Working principle

Environmentally friendly dust-free vibrating screen is because the positive pressure airflow generated during the screening process is discharged after being filtered through the air discharge bag, air discharge window or equipped dust collector, so that the air pressure inside and outside the screen is balanced or even negative pressure is generated; so there will be no powder flying, which meets environmental protection standards. The dust generated by this machine is controlled below 10mg/m3.

Ordinary screening machines use a simple closed method that only blocks air but does not exhaust. The movement of raw materials generates heat, which causes the gas to expand and be trapped in the machine, forming a malignant positive pressure gas. Therefore, no matter how tightly the ordinary screening machine is closed, there must be dust.

Environmentally friendly dust-free vibrating screen Technical parameter

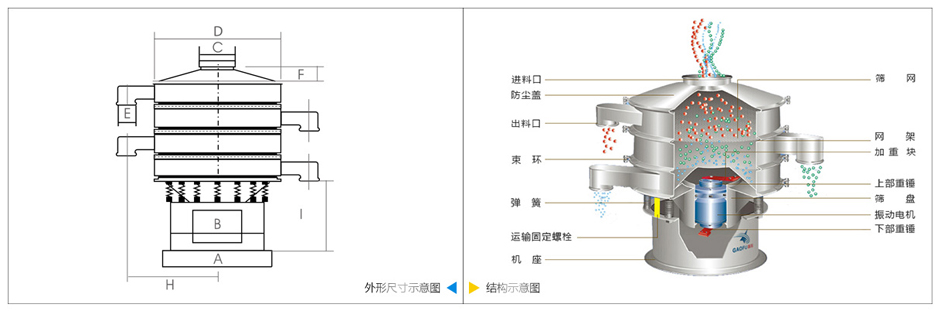

Technical parameters of rotary vibrating screen

model	A	B	C	D	E	F	H	I	Single layer height	Double height	Three-story height	Vibration Motor	Ordinary motor
S49-600	530	430	246	600	100	70	391	415	785mm	910mm	1040mm	0.25kW	0.75kW
S49-800	680	580	246	800	125	80	514	430	855mm	1005mm	1155mm	0.55kW	1.1kW
S49-1000	800	700	246	1000	150	95	615	430	865mm	1015mm	1065mm	1.1kW	1.5kW
S49-1200	975	855	400	1200	180	100	717	550	1020mm	1170mm	1320mm	1.1kW	1.5kW
S49-1500	1190	1050	400	1500	180	116	866	545	1090mm	1270mm	1440mm	1.5kW	2.2kW
S49-1800	1580	1440	400	1800	200	150	1070	675	1230mm	1400mm	1570mm	3kW	3kW
S49-2000	1800	1640	400	2000	200	190	1210	685	1280mm	1445mm	1615mm	3kW	3kW

Environmentally friendly dust-free vibrating screen peculiarity

● The air pressure inside and outside the vibrating screen is balanced, and there is a dust collector, which is dust-free and clean;

● The vibrating screen components are rolled and formed in one go, with modular production and good sealing performance;

● The environmentally friendly vibrating screen has 32 national patented technologies and can screen to 600 mesh;

● The dust is recycled into the dust collector to eliminate material waste;

● The environmentally friendly vibrating screen has passed the CE certification of the German TUV company, which is reliable, convenient and reliable.
